Description

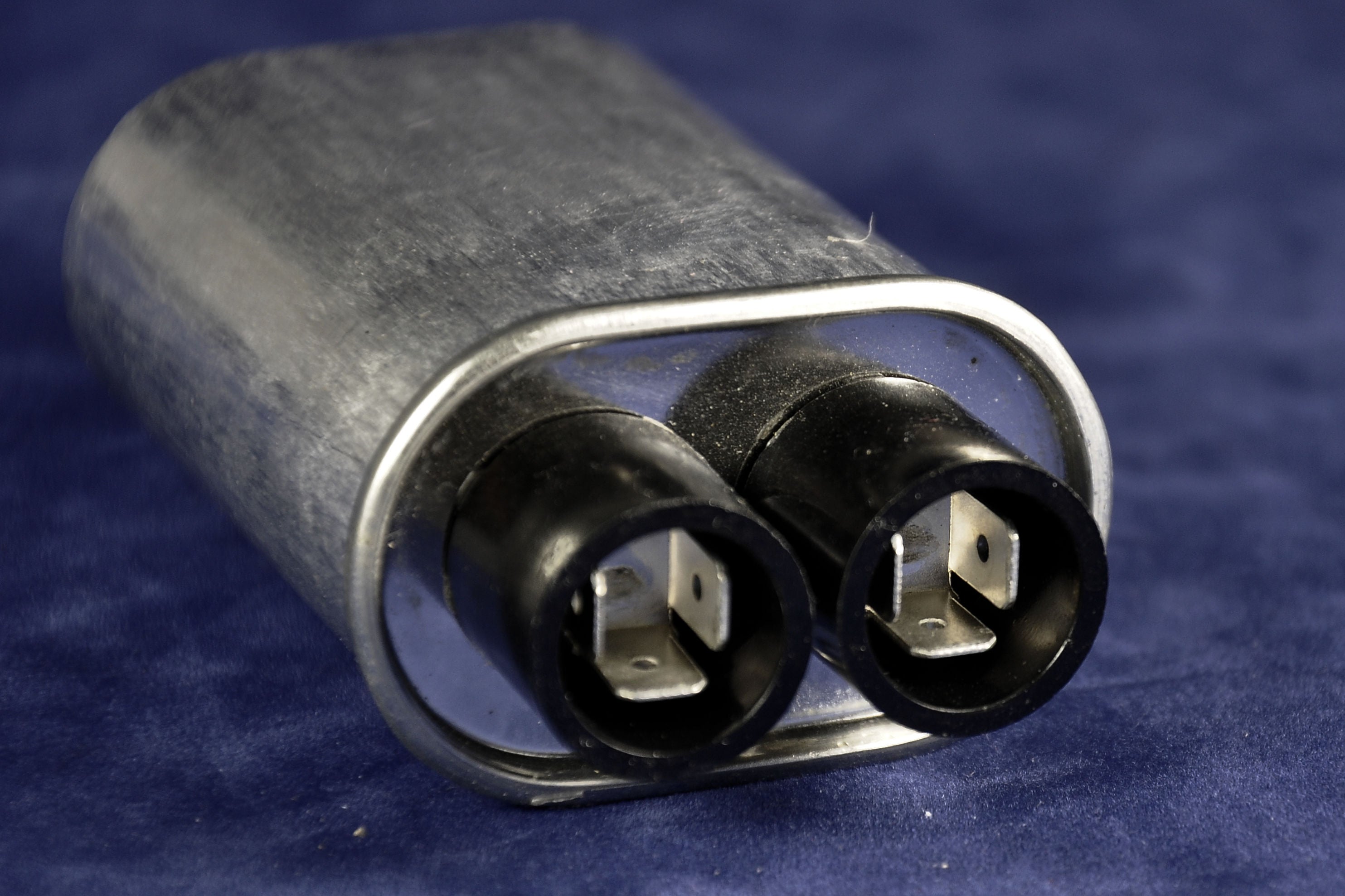

High voltage capacitor rated at 1.15 microfarads 2100 V AC.
Type CP617.
Specifications:
Capacitance 1.15 µF
Working voltage 2100 volts AC
Terminal size 6.3 mm
Case dimensions;
Height 95 mm,
Width 55 mm,
Depth 33 mm.
This is a suitable replacement for the original 1.14 microfarad originally supplied by Panasonic but is now no longer available from them. original part number A60904080GP.
The terminals are 6.3mm compared to the original 4.8mm so some modification may be needed to fit.
Suitable for:
Panasonic NE-1027 (NE1027) commercial microwave ovens,
Panasonic NE-1037 (NE1037) commercial microwave ovens.
