Description

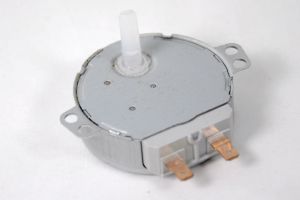

Upper stirrer (antenna) motor for Panasonic commercial microwave ovens.
Part number: A61446030AP or A6144-3E10
Shown as item 62 on the additional information file.
The microwave turntable motor is a synchronous motor so the turntable can turn is either direction. The microwave turntable motor uses a built in gearbox to drive the turntable tray via the microwave turntable coupling.
Specifications:
Electrical;
120 volts 50/60 Hz AC 2.5 watts
Rotation speed;
34.9 rpm
Dimensions:
Drive shaft length 20 mm
Rectangular drive shaft 6 mm by 3 mm
Body diameter 50mm
Body height 16 mm.
Panasonic NE-1653 (NE1653) commercial microwave ovens,
Panasonic NE-1656 (NE1656) commercial microwave ovens,
