Description

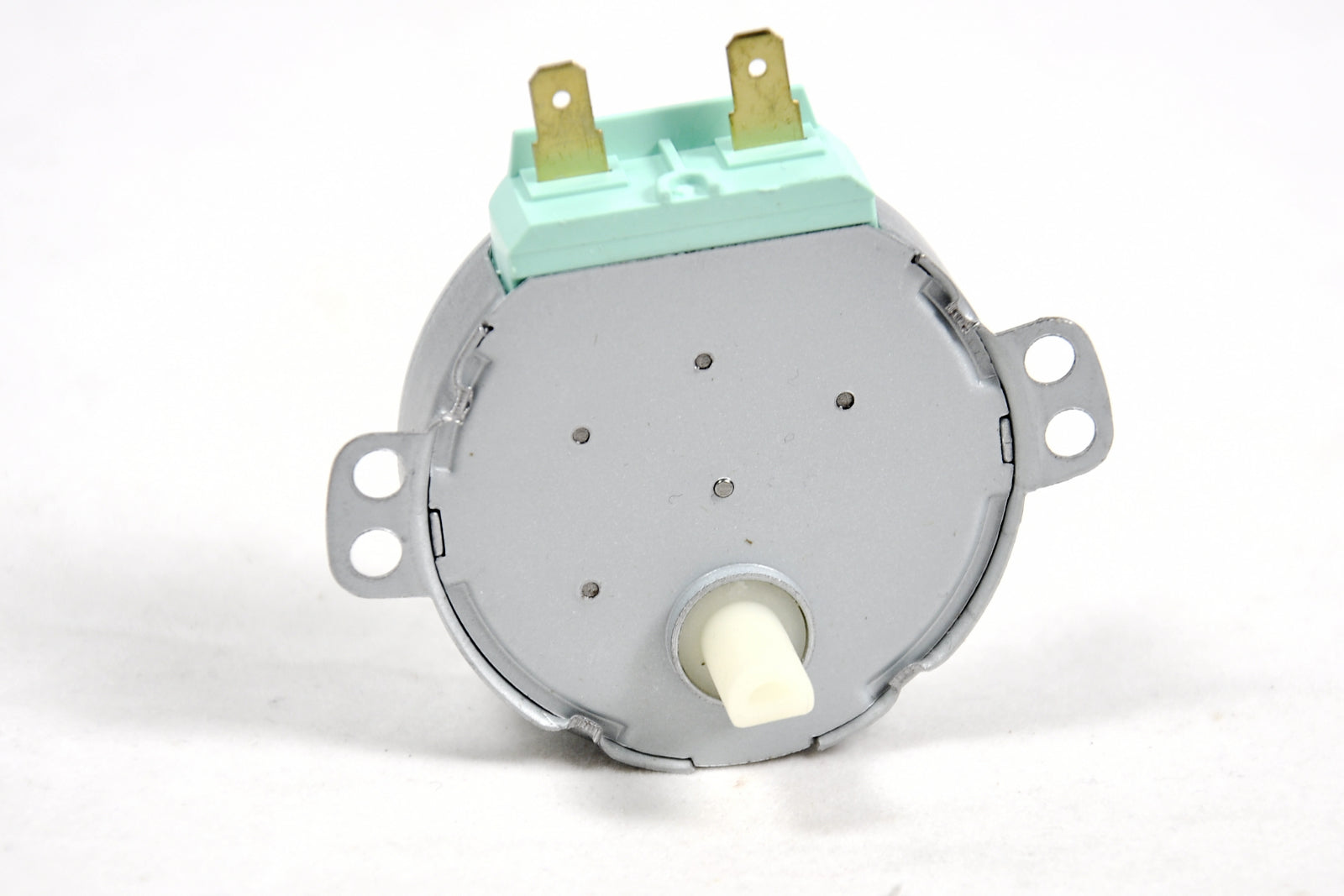

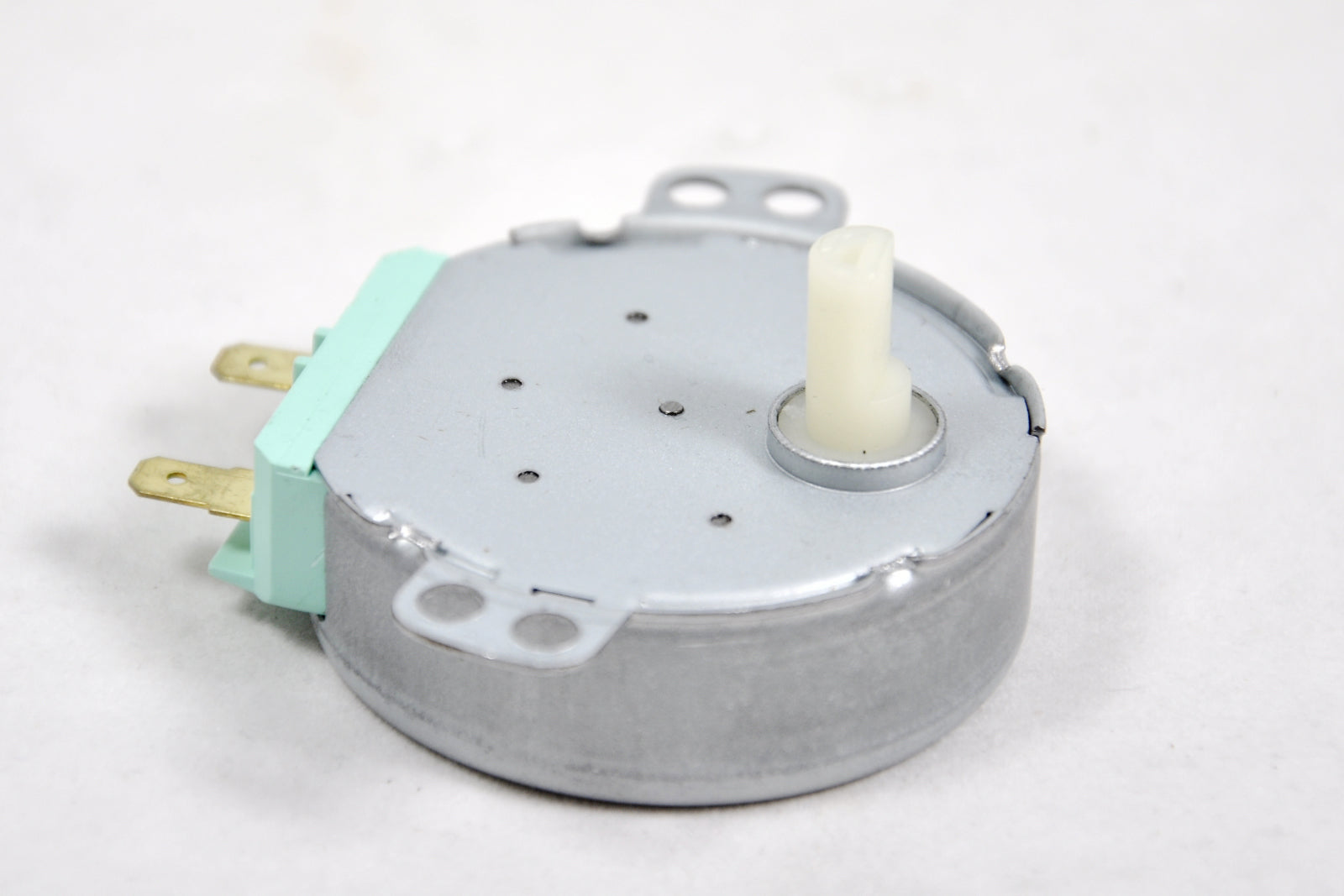

21 volt turntable motor for Samsung microwave ovens.
Part number: DE31-10154D
Alternative markings may be M2HJ49ZR02, or ST16 (EX73MAAA)
The microwave turntable motor is a synchronous motor so the turntable can turn is either direction. The microwave turntable motor uses a built in gearbox to drive the turntable tray via the microwave turntable coupling.
Specifications:
21 Volts AC 50-60 Hz :-- NOTE LOW VOLTAGE
5-6 RPM
2.5 W
4.6 mm terminals
Drive shaft length 13 mm
Drive shaft diameter 7 mm, with a "D" shaped cross section.
The microwave turntable motor is a synchronous motor so the turntable can turn is either direction. The microwave turntable motor uses a built in gearbox to drive the turntable tray via the microwave turntable coupling.
Specifications:
21 Volts AC 50-60 Hz :-- NOTE LOW VOLTAGE
5-6 RPM
2.5 W
4.6 mm terminals
Drive shaft length 13 mm
Drive shaft diameter 7 mm, with a "D" shaped cross section.
Suitable for the following models :
| AGE1072-S | CE283 |
| AGE1072 | CE285 |
| AGE107L | CE285N |
| AGE107W | CE2874N |
| AGE610B | CE2875N |
| AGE610ST | CE2877 |
| AGE610W | CE287 |
| AGE613ST | CE290DN-5 |
| AGE613W | CE290DN |
| AGE614ST | CE2910N |
| AGE614W | CE2913-B |
| AGE8103ST | CE2913-M |
| AGE8103W | CE2913-V |
| AKM106 | CE2913 |
| AKM2800 | CE2913N |
| AKM3400 | CE2914-1 |
| AKM4000 | CE2914 |
| AMC4080AAB | CE2914N |
| AMC4080AAS | CE2914NR-5 |
| AMC4080AAW | CE2914NR |
| AMC5101AAB | CE2914NR5U |
| AMC5101AAS | CE2914NT |
| AMC5101AAW | CE2914R-US |
| AMC5143AAB | CE2914R |
| AMC5143AAQ | CE2914T |
| AMC5143AAS | CE2915N |
| AMC5143AAW | CE2915NR-5 |
| AMC5143BCB | CE2915NR |
| AMC5143BCQ | CE2917N |
| AMC5143BCS | CE291DN |
| AMC5143BCW | CE2927 |
| AME0103M | CE292DN-5 |
| AME610B | CE292DN |
| AME610ST | CE292DNR-5 |
| AME610W | CE292DNR |
| AME612ST | CE292DNR5U |
| AME612W | CE292DNT-5 |
| AME8103ST | CE292DNT |
| AME8103STP | CE2933-1 |
| AME8103W | CE2933-1KC |
| AMW0113M | CE2933 |
| AMW106L | CE2933N-S |
| AMW10ZW | CE2933N |
| AMW6141ST | CE2933T |
| AMW614ST | CE2944N |
| AMW614W | CE2974 |
| AMW8113S | CE2975N |
| AMW83E | CE2975NR-5 |
| AMW9114ST | CE2975NR |
| B2300 | CE2975NR5U |
| CE200G-KS | CE2975NT-5 |
| CE230G-KS | CE2975NT-S |
| CE2360 | CE2975NT |
| CE245G(SAFW) | CE2975NT5S |
| CE245G-KC | CE2977 |
| CE245G | CE2979T-S |
| CE245GR | CE297 |
| CE245GR-US | CE2994T-1S |
| CE2611N | CE2D33-1-C |
| CE2618N-H | CE2D33-1 |
| CE2618N | CE2D33-1KC |
| CE2618NR-U | CE2D33-S |
| CE2618NR | CE2D33 |
| CE2638N | CE2D33J-KC |
| CE2638NR-U | CE2D43-S |
| CE2638NR | CE3010N |
| CE2713 | CE3110N-5 |
| CE2713-B | CE3110N |
| CE2713-KS | CE3120N |
| CE2713-M | CE320G-KC |
| CE2713-V | CE37AL-KC |
| CE2713-Y | CE735G |
| CE2713C | CE737G |
| CE2713N-Y | CE737GR |
| CE2713N | CE745G |
| CE2713R-US | CE757G(SDW) |
| CE2713R | CE757G(SPLW) |
| CE2713T-B | CE757G |
| CE2713T-M | CE757GR |
| CE2713T |
CE833G(SCAW)
|
| CE2714 |
CE833G(SDRW)
|
| CE2717N |
CE843G(SCRW)
|
| CE2718NR-D |
CE843G(SDRW)
|
| CE2718NR | CE935G |
| CE2719N-Y | CE937G |
| CE2719N | CE945G |
| CE271FN-Y | DE6612S-DC |
| CE271FN | DE7711N |
| CE2727 | DE7712N |
| CE2733 | FG77SUB |
| CE2733C | FG77SUST |
| CE2733N | FG87KST |
| CE2733R-US | FG87SST |
| CE2733R | FG87SUST |
| CE2738NR-D | FW77SUB |
| CE2738NR | FW77SUST |
| CE2774 | FW87KST |
| CE2777 | FW87SB |
| CE280 | FW87SST |
| CE280N | FW87SW |
| CE2810N | FW97KST |
| CE2813NR-D | G2712N |
| CE2813NR-U | G2719N |
| CE2813NR | G271FN |
| CE2814NR | G633C(SKW) |
| CE2815N | G639C |
| CE2817N | GE102V-X |
| CE2817NR |
GE106VT-SX-XEG
|
| CE281DN | GE106VT-SX |
| CE281GN | GE1072 |
| CE2827N-B | GE107L-S |
| CE2827N-D | GE107W |
| CE2827N-S | GE108L-S |
| CE2827N | GE109M |
| CE2827NR-S | GE117K-XEN |
| CE2827NR-U | GE117KR-BWT |
| CE2827NR | GE62N-B |
| CE2827NT-S | GE711K |
| CE2827NT-Y | GE712K-XEO |
| CE2827NT | GE712MR-BWT |
| CE282DN | GE71A |
| CE2833N | GE71A-B |
| CE2833NR-D | GE71M-ELE |
| CE2833NR-U | GE71M-X |
| CE2833NR | GE71M |
